Product Model

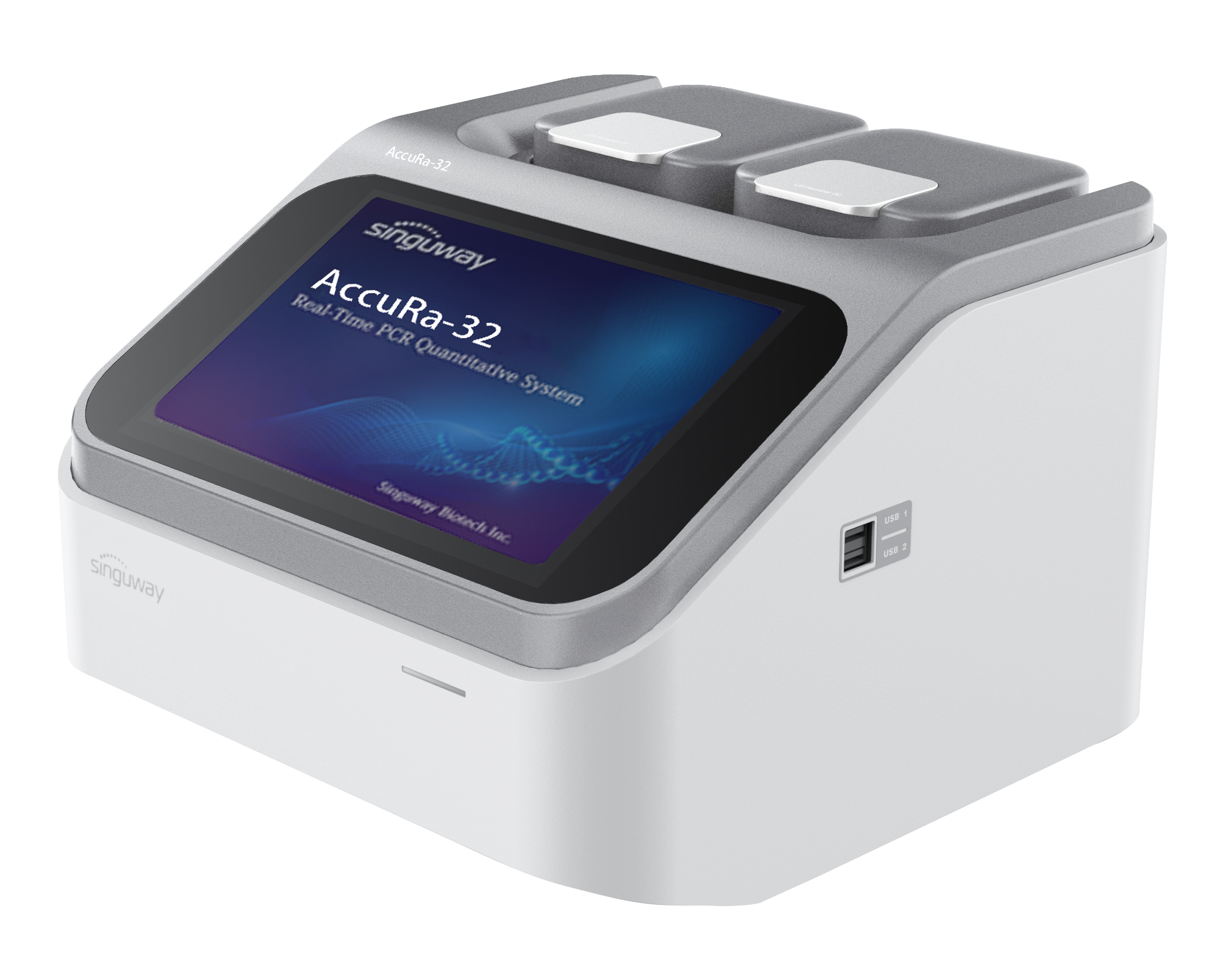

AccuRa-32

Sample throughput

32(4×8 wells, dual module)

Applicable consumables

0.2ml thin-walled transparent single tube,0.2ml thin-walled transparent octal tube

Reaction Volume

15-100μl

Temperature control technology

Semiconductor coolers

Temperature control range

0-100℃(Accuracy: 0.1℃)

Maximum temperature ascending and descending rate

8℃/s

Temperature control accuracy

±0.1°C

Temperature uniformity

±0.25°C

Temperature Accuracy

±0.25°C

Hot cover temperature range

30-110℃(adjustable, default 105℃)

Temperature control mode

Module temperature control, test tube temperature control

Fluorescence intensity repeatability

CV≤1%

Fluorescence intensity precision

CV≤3%

Fluorescence excitation light wavelength

F1: 465nm, F2: 525nm, F3: 571nm, F4: 628nm

Fluorescence detection wavelength

F1: 510nm, F2: 564nm, F3: 612nm, F4: 692nm

Applicable fluorescent dyes

F1: FAM/SYBR Green I, F2: HEX/VIC/JOE/TET, F3: ROX, F4: CY5

Excitation light source

High brightness LED, long life, no maintenance needed

Detectors

Photodiodes (PD)

Dynamic Range

1-10¹⁰Copies

Detection sensitivity

Single copy genes can be detected

Repeatability of sample detection

CV≤1%

Linearity

r≧0.990

Software Analysis Functions

Quantitative/qualitative, melting curve, genotyping

Print

Support direct report printing

Control method

10-inch touch screen control, also can be connected to computer control, Win10 operating system

Power-off protection

With power-off protection function

Interface method

USB3.0, Type-B, LAN

Dimension

W×D×H=316×340×220mm

Weight

8kg

Input Voltage

AC100V-240V～±10%, 50Hz/60Hz±1Hz

Output power

600W
